40mm Thickness Car Brake Disc Lathe Auto Brake Lining Equipment

Product Categories

Shanghai SuperGarage Automotive Co.,Ltd

Contact Now

Brand Name : SG

Model Number : SG-BDL9602

Certification : CE

Place of Origin : CHINA

MOQ : 5 Units

Payment Terms : L/C, T/T

Delivery Time : 30 Days

Packaging Details : Carton+Pollywood

Product Name : Brake Disc Lathe

Maximum brake disc thickness : 40mm

Vernier knob accuracy : ≤0.02mm /≤0.01mm

Feed rate : 8.5mm/min

Power Supply : 110V/220V/380V

Working Height Min/Max : 100/120cm

Type : Horizontal Universal Lathe

Drive Speed : 120rpm

Turning Accuracy : 0.002mm

Brand : SG

Warranty : 1 Year

Contact Now

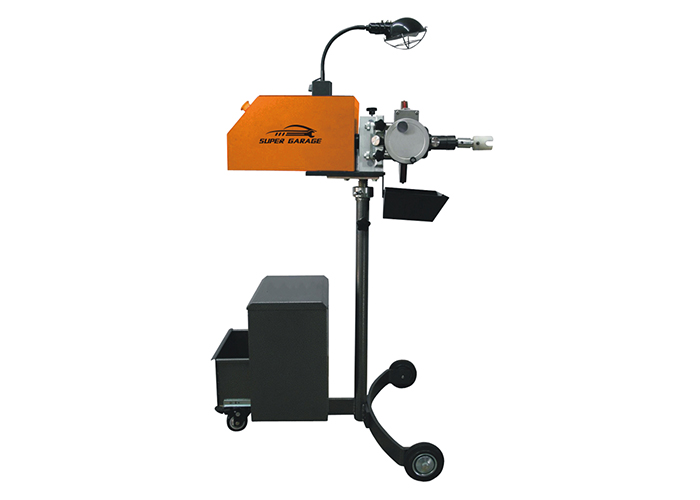

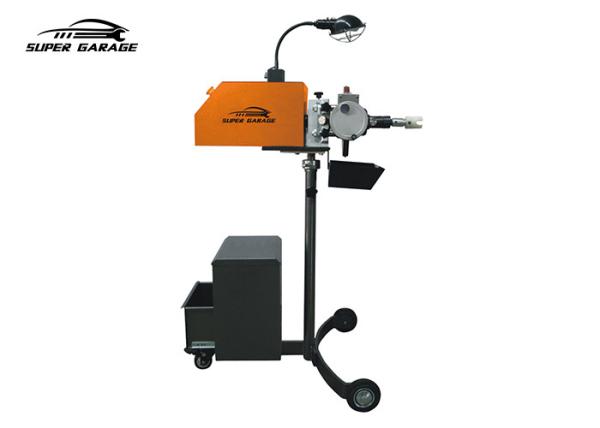

Multi-Function Disk Brake Lathe Auto Brake Lining Equipment Car Brake Lathes SG-BDL9602

Disc Lathe SG-BDL9602:

Technical Data:

Model	SG-BDL9602
Maximum brake disc thickness	40mm
Vernier knob accuracy	≤0.02mm /≤0.01mm
Feed rate	8.5mm/min
power supply	220/110V 50/60HZ
Working height min/max	100/120cm
Drive speed	120rpm
Turning accuracy	0.002mm
Brake disc runout	≤0.00-0.005mm
Brake disc thickness variation	Ra1.0-2.0mm
Brake disc surface roughness	74DBA

Features:

Multi-function disk brake-lathe simultaneously equipped with vehicle-mounted type and separated type. You can use separated type brake-lathe for the disk that is easy to detach, while vehicle-mounted type brake-lathe for the disk that is hard to detach.SG-BDL9602 is the economic and highly capable brake-lathe to meet your requirement.
The function of resurfacing disks in variable sizes. It has manholes for adjusting intervals, if necessary. User may adjust and mount the diameter of each different brake disks on the vehicle, enables which more effectiveness when resurfacing the separated disks.

40mm Thickness Car Brake Disc Lathe Auto Brake Lining Equipment

Product Tags:

40mm Car Brake Lathe
